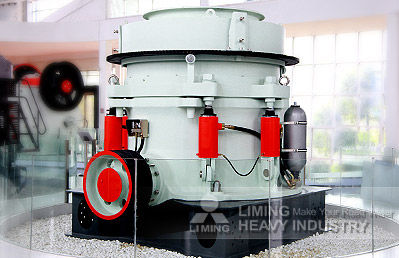

CS cone crusher
Product introduction
The CS cone crusher is a high-performance spring cone that integrates high swing frequency, optimized cavity shape and reasonable stroke based on the principle of laminating crushing and multi-breaking and grinding concept. Over the years, it has won the trust of users around the world with its excellent performance, reliable quality and high cost performance. It is an ideal substitute for traditional cone crusher.
CS cone crusher is mainly composed of frame, fixed cone assembly, moving cone assembly, spring mechanism, bowl type shaft frame and transmission; its auxiliary part is composed of electrical system, thin oil lubrication system and hydraulic clearing system. .
During operation, the motor drives the eccentric sleeve through the V-belt, the large pulley, the transmission shaft, the bevel gear, and the large bevel gear. The broken cone axis is rotated under the eccentric bushing, so that the wall surface is broken. Close to the surface of the rolling wall, and then the material is continuously crushed, crushed and bent in the annular crushing cavity composed of the fixed cone and the moving cone. After multiple extrusions, impacts and bending, the material is broken to the desired particle size and discharged through the lower portion.
