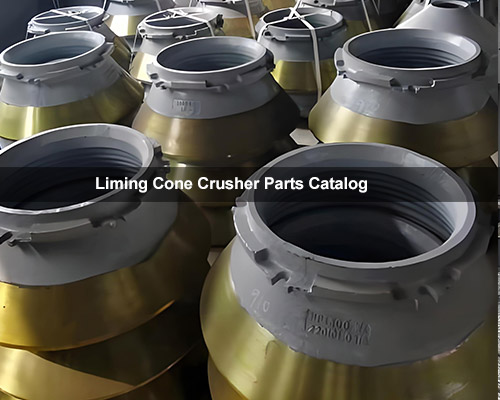

Liming Cone Crusher Parts Catalog
Every quarry owner and mining engineer knows that the heart of a production line lies in the reliability of its crushers. However, even the most robust machines face wear and tear. When your equipment goes down, searching for the correct Liming cone crusher parts catalog can be a race against time. Using non-genuine or ill-fitting parts not only reduces efficiency but can also cause catastrophic damage to your main shaft and hydraulics.
At Liming Heavy Industry, we understand that precision matters. Whether you are operating our flagship HPT Multi-cylinder series or the classic CS Spring series, using genuine OEM parts ensures your factory output remains stable. This guide breaks down our comprehensive parts catalog, helping you identify exactly what you need to keep your crushing plant running at peak performance.
Understanding the Liming Cone Crusher Series
To effectively navigate the Liming cone crusher parts catalog, you must first identify your machine model. Liming Heavy Industry manufactures several distinct series of cone crushers, each with unique internal structures and spare parts lists.
1. HPT Series (Multi-cylinder Hydraulic)
The HPT series is our modern, high-efficiency line. Parts for this series are designed for high-pressure environments and laminated crushing.
- Key Components: Adjustment ring, release cylinder, hydraulic motor.
- Wear Parts: High-manganese mantles and concaves designed for fine crushing.
2. HST Series (Single-cylinder Hydraulic)
Known for its intelligent control system, the HST series relies heavily on precision hydraulic parts and dust-sealing components.
- Key Components: Moving cone assembly, eccentric bushing, transmission shaft.
- Wear Parts: Special alloy liners to handle hard rock applications.
3. CS & PY Series (Spring Cone)
These are the classic workhorses found in many older quarries. While robust, they require specific maintenance on their spring mechanisms and bronze bushings.
Detailed Parts Breakdown: What’s Inside the Catalog?
Below is a categorized breakdown of the essential components available in our parts ecosystem. We utilize high-quality materials to extend service life and reduce replacement frequency.
Core Wear Parts (Liners)
The most frequently replaced items are the liners that directly contact the stone. We use modified high-manganese steel (Mn13Cr2, Mn18Cr2, and Mn22Cr2) to ensure durability.
| Part Name | Function | Material / Specs |
|---|---|---|
| Mantle (Moving Cone) | Covers the cone head; rotates to crush material against the concave. | Mn18Cr2 / Mn22Cr2 (Heavy Duty) |
| Concave (Bowl Liner) | Fixed to the upper frame; provides the stationary surface for crushing. | Mn18Cr2 / Mn22Cr2 |
| Torch Ring | Locks the mantle in place. | Forged Steel |
Internal Transmission & Bushings
While liners handle the rock, the internal bushings handle the force. These parts require precise machining to ensure the oil film is maintained, preventing overheating.
- Eccentric Bushing: Made from high-lead bronze, this part is critical for the eccentric rotation of the main shaft.
- Frame Bushing: Supports the eccentric sleeve and reduces friction against the main frame.
- Step Bearing Plate: Supports the weight of the moving cone assembly.
Hydraulic & Sealing Components
For HPT and HST series, the hydraulic system is vital. Our catalog includes:
- Dust Seals (U-Type / T-Type): Prevent dust from entering the lubrication system.
- Hydraulic Cylinders: For tramp iron release and setting adjustment.
- Accumulators: Absorb pressure spikes during operation.
Why Choose Genuine Liming OEM Parts?
The market is flooded with third-party foundries claiming to fit Liming crushers. However, referencing the official Liming cone crusher parts catalog and ordering from the factory offers distinct advantages:
- Dimensional Accuracy: A deviation of just 1mm in the bushing or liner can lead to severe vibration and frame cracking.
- Material Formula: Our Mn18Cr2 formula includes specific micro-alloys (like Molybdenum) that cheaper foundries often skip to cut costs.
- Warranty Protection: Using non-genuine parts may void the warranty on your main machine.
Maintenance Tips to Extend Part Life
Even the best parts wear out. To get the most out of your investment, follow these tips:
- Feed Distribution: Ensure the material is fed into the center of the crusher. One-sided feeding accelerates liner wear on one side, wasting the remaining metal.
- Check Backing Compound: When replacing liners, always use high-quality epoxy backing compound to fill gaps and absorb shock.
- Monitor Oil Temperature: A spike in return oil temperature often indicates bushing distress before failure occurs.
[Insert Image: Technician inspecting the internal bushing of a Liming HPT cone crusher. Alt Text: Maintenance and inspection of Liming cone crusher parts]
Frequently Asked Questions (FAQ)
1. How do I find the correct part number in the Liming cone crusher parts catalog?
The most accurate way is to check the metal nameplate on your crusher for the Model Number (e.g., HPT300) and Serial Number. Alternatively, check your original operation manual (Parts List section). If you have lost this, contact our support team with your machine photos.
2. Can I upgrade my standard liners to heavy-duty ones?
Yes. For most HPT and HST models, the Liming cone crusher parts catalog offers “Heavy Duty” or “Extra Coarse” cavity options. These use thicker manganese steel or modified profiles to handle abrasive materials like granite or basalt better.
3. How often should I replace the bronze bushings?
Bushings generally last much longer than liners. However, they should be inspected every time you change the liners. If you notice deep scratches, burning marks, or if the clearance exceeds the factory tolerance limits, they must be replaced immediately to save the main shaft.
Maintaining high productivity in your quarry requires quick access to the right components. The Liming cone crusher parts catalog is designed to provide you with the exact specifications needed to minimize downtime and maximize ROI. Whether you need a simple dust seal or a complete set of Mn18Cr2 liners, choosing genuine Liming parts is the only way to guarantee performance.
